High Temperature Chamber Furnace - 1400°c to 1800 °c
Overview
The BRF models form a comprehensive range of high thermal efficiency, rapid heating chamber furnaces with operating temperature of 1400 °c to 1800 °c
- The 1400, 1500, 1600 °c models are heated by silicon carbide rod elements.
- The 35 liters furnace is floor standing with all other capacities being bench mounted.

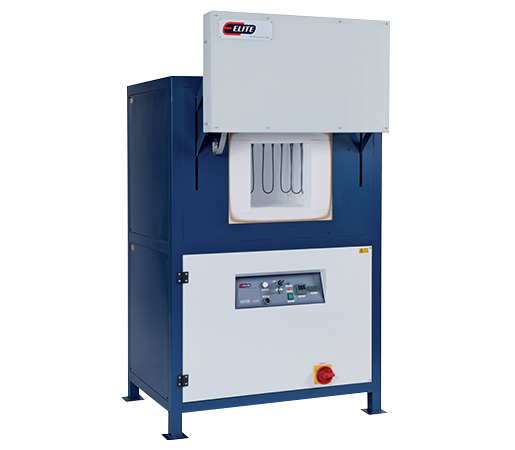

- The 1700 & 1800 °c models are heated by molybdenum disilicide and molybdenum tungsten disilicide elements.
- The 5 liter capacity models are bench mounted with all other models being floor standing.
- Overtemperature Protection is included in the standard specification.
- Electric doors are available as a chargeable option (E).
| Model | MaxTemp (°C) | MaxCont (°C) | MaxChamber Dims (mm) H x W x D | ExteranalCase Dims (mm) H x W x D | ChamberCapacity (litres) | MaxPower (Kw) | Volts | Phase | NettWt. (kg) | HearthTile |
| BRF14/5 | 1400 | 1400 | 150 x 140 x 250 | 730 x 580 x 645 | 5 | 4.5(12.6) | 230 | 1 | 58 | s-s |
| BRF14/10 | 1400 | 1400 | 190 x 180 x 310 | 780 x 630 x 692 | 10 | 7.5(14.4) | 230 | 1 | 74 | S-S |
| BRF14/27 | 1400 | 1400 | 290 x 270 x 340 | 892 x 802 x 740 | 27 | 12.0(21.6) | 400 | 3 | 110 | S-S |
| BRF15/5 | 1500 | 1500 | 150 x 140 x 250 | 730 x 580 x 645 | 5 | 4.5 (12.6) | 400 | 3 | 58 | S-S |
| BRF15/10 | 1500 | 1500 | 190 x 180 x 310 | 780 x 630 x 692 | 10 | 7.5(14.4) | 400 | 3 | 74 | s-s |
| BRF15/27 | 1500 | 1500 | 290 x 270 x 340 | 892 x 802 x 740 | 27 | 12.0(21.6) | 400 | 3 | 110 | s-s |
| BRF16/5 | 1600 | 1600 | 150 x 140 x 250 | 730 x 580 x 670 | 5 | 5.0(12.8) | 400 | 3 | 59 | s-s |
| BRF16/10 | 1600 | 1600 | 190 x 180 x 310 | 780 x 630 x 715 | 10 | 10.0(13.2) | 400 | 3 | 74 | S-S |
| BRF16/26 | 1600 | 1600 | 255 x 300 x 340 | 1050 x 950 x 823 | 26 | 14.0(26.2) | 400 | 3 | 110 | S-S |
| BRF16/35 | 1600 | 1600 | 255 x 300 x 465 | 1475 x 1100 x 1000 | 35 | 16.0 | 400 | 3 | 380 | s-s |
| BRF17/5M | 1700 | 1700 | 160 x 150 x 215 | 635 x 900 x 695 | 5 | 4.4 | 230 | 1 | 128 | S-F |
| BRF17/5E | 1700 | 1700 | 160 x 150 x 215 | 635 x 900 x 695 | 5 | 4.4 | 230 | 1 | 128 | S-F |
| BRF17/12M&E | 1700 | 1700 | 230 x 230 x 230 | 1550 x 850 x 740 | 12 | 7.6 | 230 | 1 | 230 | S-F |
| BRF17/27M&E | 1700 | 1700 | 300 x 300 x 300 | 1600 x 880 x 800 | 27 | 12.0 | 400 | 3 | 316 | S-F |
| BRF18/5M | 1800 | 1800 | 170 x 150 x 200 | 635 x 900 x 785 | 5 | 4.7 | 230 | 1 | 170 | S-F |
| BRF18/5E | 1800 | 1800 | 170 x 150 x 200 | 635 x 900 x 785 | 5 | 4.7 | 230 | 1 | 170 | S-F |
| BRF18/13M/E | 1800 | 1800 | 220 x 200 x 300 | 1600 x 880 x 800 | 13 | 9.0 | 230 | 1 | 287 | S-F |
| BRF18/18M/E | 1800 | 1800 | 220 x 200 x 400 | 1600 x 880 x 800 | 18 | 11.6 | 230 | 1 | 365 | S-F |
| BRF18/27E | 1800 | 1800 | 300 x 300 x 300 | 1600 x 1050 x 880 | 27 | 15.0 | 400 | 3 | 494 | S-F |
